8-10 Year Design Life
50 Amp Hours
Email: email@example.com or telephone: +(27) 11 888 0410
2-4 Days Availability (Ex Stock, Subject to prior sale)
Warning: Last items in stock!
|Battery Rated Nominal Voltage||12|
|Battery Rated Capacity Amp-hour @20 Hr Rate to 1.6Volts per Cell||50|
|Battery Mass (kg)||17.3|
|Battery Terminal Type||I2-Thread lead alloy recessed terminal to accept M6 bolt|
|Battery Technology||AGM (Absobed Glass Mat) Sealed VRLA (Valve Regulated Lead Acid)|

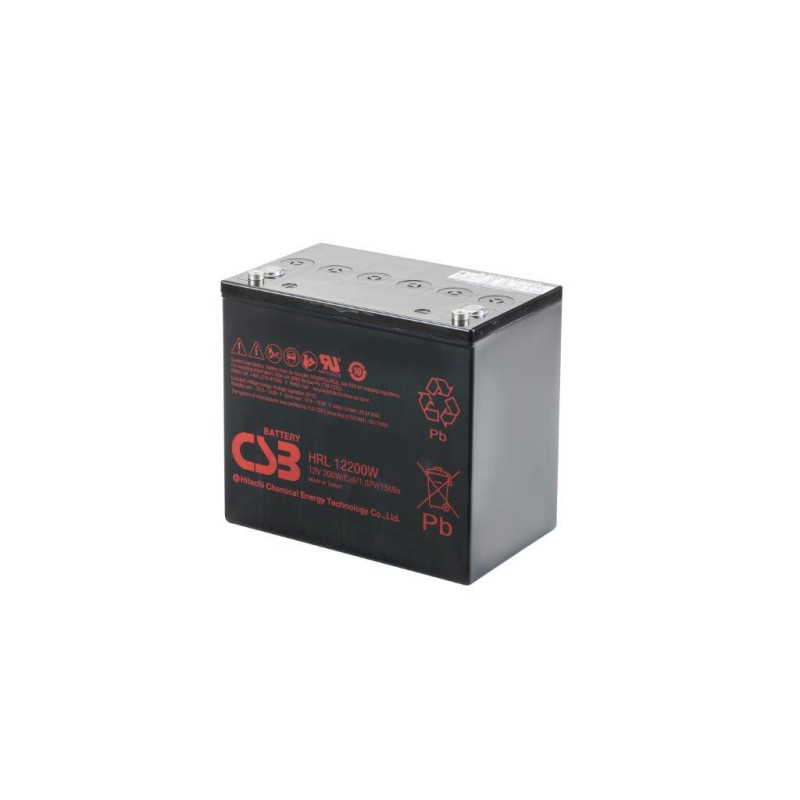

|HRL 12200W is specially designed for high efficient discharge and long life.application. It's characteristics are small volume, light weight and high discharge efficiency. It can be used up to 10 years in standby service|
HRL stands for High Rate and long life. The series focus on improving trickle life that base on HR series. Main features as follow:
Solar Cell Power Generation:
|Trickle (or float) Service Life|
‧With nominal capacity less than 80W, the series battery is up to 8 years of service life in floating charge conditions at 25℃(77℉).
‧With nominal capacity greater than 110W, the series battery is up to 10 years of service life in floating charge conditions at 25℃(77℉).
|Cells Per Unit||6|
|Voltage Per Unit||12 V|
|Capacity||215W @15 minute-rate to 1.67V per cell @25℃ (77°F)|
|Weight||Approx. 17.3kg (38.13 lbs)|
|Maximum Discharge Current||400A (5sec)|
|Internal Resistance Approx.||Approx. 5.5 mΩ|
|Operating Temperature Range||Discharge：-15℃~50℃(5°F~122°F)
|Nominal Operating Temperature Range||25℃±3℃ (77°F±5°F)|
|Float Charging Voltage||13.5 to 13.8 VDC/unit Average at 25℃ (77°F)|
|Recommended Maximum Charging Current Limit||20A|
|Equalization and Cycle Service||14.4 to 15.0 VDC/Unit Average at 25℃(77°F)|
|Self Discharge||It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃|
|Terminal||I2-Thread lead alloy recessed terminal to accept M6 bolt|
|Container Material||Polypropylene(UL 94-HB) & Flammability resistance of (UL 94-V0) can be available upon request.|
